IPC-643 XTREAMPHASE® DEPTH GLASS STYLE LIQUID/LIQUID PHASE COALESCERS

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
PECO IPC Series
PECO SEAL
Stuur mij een offerteZet op verlanglijstje
Bekijk onze winkels
Op bestelling
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

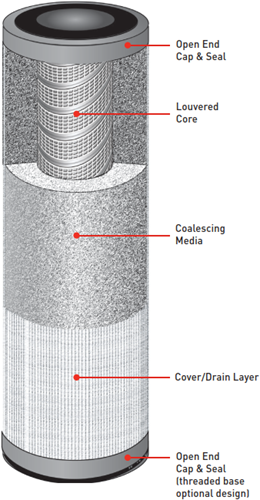

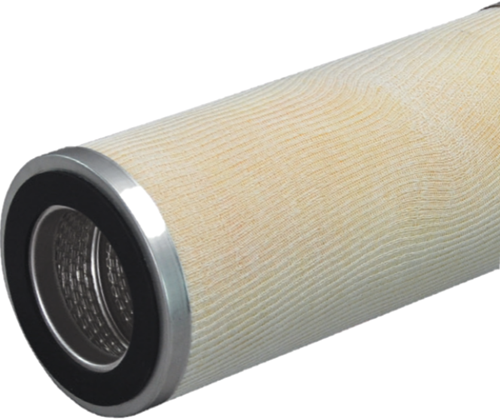

Series IPC coalescer cartridges are used in vertical and horizontal PECO Series 110 vessels and also as a retrofitto other competitor equivalents. Its main purpose is to coalesce and separate free and entrained water from fluids such as aromatics, condensate, diesel, gasoline kerosene, LPG and lube oil. The cartridge can also be used to remove entrained liquids other than water. The Series IPC coalescer contains a fiberglass coalescing media, which is hydrophilic in nature, making it an excellent choice for attracting water droplets. It also contains an internal pre-filter for removing unwanted solid contaminants that can prematurely plug the coalescing media. The coalescer typically works in conjunction with the Series S separator cartridge. The separator uses a fine hydrophobic material to act as a final barrier/repellent to any stray droplets that try to migrate downstream.

Documenten

Specificaties

Product groepFilteratie
Medium groepBrandstoffen: Benzine E10, E85, Ethanol, Superplus
Brandstoffen: Diesel (B10, B30, B100), Marine Diesel, HVO, Biodiesel, Petroleum, FAME
Smeerolie, Hydrauliek Olie, Afgewerkte Olie, Plantaardige Olie, Synthetische Olie
Vloeibare gassen, LPG, NH3
ApplicationClean-Diesel
Industrial
Cleanfuel
Tank Conditioning
Tankcleaning - Fuel Polishing
FunctionWater Coalescer
Flow DirectionInside-to-Outside
Micron Rating1
Recommended changeout (psi)15 psi
Recommended changeout (bar)1 bar
Max Differential pressure (bar)1,7 bar
Max Differential pressure (psi)25 psi
Maximum operating temperature (°F)240 °F
Maximum operating temperature (°C)116 °C
CleanableNO
Free and emulsified Water removal < PPM8 PPM
Internal diameter - Element (inch)3,5 inch
Internal diameter - Element (mm)89 mm
External diameter - Element (inch)6 inch
External diameter - Element (mm)152 mm
Overall length (Inch)43,25 inch
Overall length (mm)1099 mm
End Cap ConfigurationOpen End & Blind Opposite
PH Range (continuous operation)5 to 9
Filter MaterialResin Impregnated Microglass Media
Seal MaterialBuna-N
Viton
MerkPeco Facet
CategorieFiltratie
ArtikelcodeIPC-643
VerpakkingStuk(s)
