LCR.iQ electronic register panel mount with SenseiQ Board for aviation - Div. 2

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
Stuur mij een offerteZet op verlanglijstje
Bekijk onze winkels
Vandaag besteld is binnen 1 werkdag(en) in huis
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Accessoires
  • Veel gestelde vragen
  • Alternatieve artikelen

Barcode

Artikelomschrijving

LCR.iQ® Designed by those who use it

Built from the ground up by Liquid Controls' Research & Development team with close collaboration with customers who benefit from it, fueler safety, ease of use, and data management are the highest priorities in the design of the LCR.iQ®.

HIGH-RESOLUTION DISPLAY WITH DAY/NIGHT MODES
7" ultra bright video display designed for extreme climates and rigorous fueling environments.

LARGE SCALABLE DIGITS FOR EASY VIEWING
Large digits provide easy viewing, day or night, up to 100 feet (30 m) away.

CONFIGURABLE FUELING DATA
The LCR.iQ® allows users complete control over the fueling data fields displayed on the detailed delivery screen.

SMART KEYS FOR GUIDED OPERATION
Smart keys guide the operator through the next available steps in the operation to minimize risk of error.

LARGE KEYS FOR EASY OPERATION
Large, petroleum and UV resistant elastomeric keys provide confident feel and consitent operation.

METER MOUNT BASE
Liquid Controls standard meter-mount base with integrated pulser allows easy mount-and-connect retrofit.

CONFIGURABLE SCREEN DETAILS
Easily configure the idle and active fueling screens the operator sees before, during, and after fueling. Features like tank level gauge, flow rate, totalizers, and any other field the register measures can be displayed on the main screen.

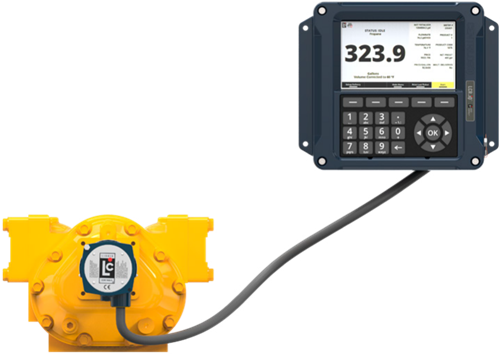

PANEL MOUNT ENCLOSURE OPTION
New panel mount design allows convenient remote mounting, providing OEMs greater design flexibility.

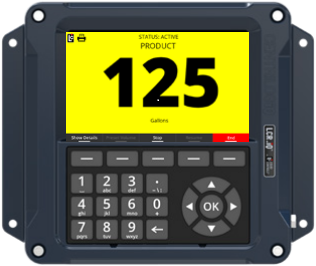

ACTIVE FUELING FULL SCREEN MODE
Yellow background indicates active fueling mode to improving safety and fueling status awareness of operators,

MULTI-LANGUAGE FUNCTIONALITY
Operator level languages include: English, Spanish, German, French, Portuguese, Chinese, Korean It's just that simple. LC engineers designed the LCR.iQ® from the user's perspective. The result is a user-guided, configurable interface that walks the operator through the complete fueling operation, minimizing chance for error.

CONFIGURABLE DELIVERY PROCESSES Guide the operator through the fueling process of your choosing. From basic pump and print to preset by volume, total price, or product weight*, the operator can also select product type, multiple deliveries, or other options.

OPERATOR FRIENDLY SCREENS WITH DAY / NIGHT MODES AND BRIGHTNESS CONTROL
LCR.iQ® screens adapt to the operator. Full, active fueling screen with yellow background when "Start" is pressed with day/ night mode and brightness control options.

MEASURED AND MANUAL TANK INVENTORY
The LCR.iQ provides highly accurate tank level measurement and inventory management for up to 12 tanks and products. Each tank can be configured according to product type, tank size, or measurement method to be used (either automatic or manual level control). Auto-Calibrating Tank Measurement The LCR.iQ offers the first ever continuously calibrated tank profile that does not require entering tank strapping charts. • When combined with an approved tank level gauge with 4-20 mA output, it auto-generates a precise tank strapping profile. • Delivers highly accurate measured tank inventory and controls without the need of middleware or third party control devices.

MULTIPLE LANGUAGE SUPPORT
The LCR.iQ provides embedded language files to support operator level language translations easily selectable from the settings menu.

CONFIGURABLE LARGE DIGIT DISPLAY
The LCR.iQ now allows users to configure the large digit data displayed to include total retail sale and volume measured to the 1/1000th decimal place or flow rate and volume when real-time of rate of fuel delivery monitoring is required.

EXPANDABLE INPUTS & OUTPUTS
The SENSEiQ expansion board is available for applications with more demanding sensing and control options such as multiple measured tank levels, water detection, remote controls, external display devices, etc. SENSEiQ™ Sensor Expansion Board Provides end users the capability to connect and control a multitude of external devices in applications where additional I/O is required. • 6 Analog inputs: Multiple Tank level sensors, H2O sensor • 4 Digital inputs: remote start / stop / print. Pulse inputs • 4 Digital outputs: Large digit external displays, calibrated pulse output, alarms, deadman control alarms.

DIGITAL VALVE CONTROL
The LCR.iQ provides configurable digital valve control to gain higher levels of control over delivery flow rates than conventional registers that are limited to utilizing simple 2-stage block valves for flow control.
Gain Full Flow Control Over Your Deliveries Gain full control over your fueling application with multi-stage variable control and ramp up and ramp down of flow rates during deliveries.
• Ideal for applications where precise flow-rate control is critical for both safety and fueling accuracy.
• Utilize the same fueling equipment in both high and low flow rate applications.

WATER DETECTION AND SAFETY CONTROLS (Aviation)
When configured with an approved water sensor, LCR.iQ provides boundary controls and safety shut down according to Joint Inspection Group (JIG) and Airlines for America standards.

DATA CONNECTIVITY
BLUETOOTH
  • Wireless printing with compatible Bluetooth enabled printers
  • Wireless control and data transfer via FUELiQ app or SDK
Wi-Fi
  • Wireless control and data transfer via FUELiQ app or SDK
  • Transaction details accessible using FTP
ETHERNET

Documenten

Specificaties

MerkLiquid Controls
CategorieMeters en registratie
ArtikelcodeLCR.iQ-PS
VerpakkingDoos

Accessoires

LCR.iQ iSense I/O board

LCR.iQ iSense I/O board

  • 6 x Analog Inputs
  • 4 x Digital Inputs (remote start/stop, pulse, etc)
  • 4 x Digital Outputs
Artikelnummer: 84423

Alternatieve artikelen

LCR.iQ electronic register meter mount external pulser

LCR.iQ electronic register meter mount external pulser

  • Meter mount, external pulser
  • High resolution display day/night modes
  • Atex approved Zone 2
  • 11 output / 10 input digital
  • 1 analog 4-20mA input
  • 4x RS232/485, WiFi, Bluetooth
  • 1GB internal mem, 128MB Flash NAND 8GB eMMC Flash drive
Artikelnummer: LCR.iQ-E
LCR.iQ electronic register meter mount Internal Pulser

LCR.iQ electronic register meter mount Internal Pulser

  • Meter mount, internal pulser - replaces Mechanical Register
  • High resolution display day/night modes
  • Atex approved Zone 2
  • 11 output / 10 input digital
  • 1 analog 4-20mA input
  • 4x RS232/485, WiFi, Bluetooth
  • 1GB internal mem, 128MB Flash NAND 8GB eMMC Flash drive
Artikelnummer: LCR.iQ-I
TEX Flow Computer 24 VDC

TEX Flow Computer 24 VDC

  • Panel mount, external pulser
  • High resolution display day/night modes
  • Atex approved Zone 1
  • 11 output / 10 input digital
  • 1 analog 4-20mA input
  • 4x RS232/485, WiFi, Bluetooth 4.2, CAN, LAN
  • 1GB internal mem, 128MB Flash NAND 8GB eMMC Flash (64GB max)
Artikelnummer: TEX-TB0000
