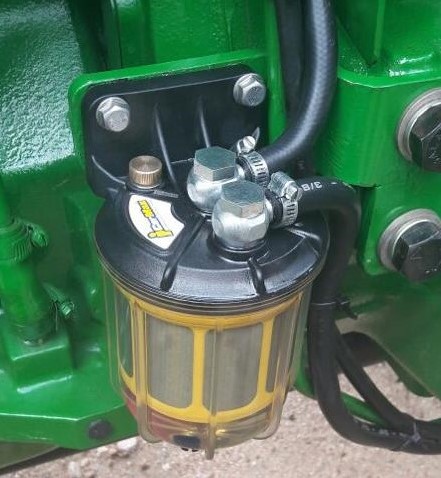

Duo-AquaTrap™ DAT 1 filter complete with 10 micron paper cartridge - 8mm hosetails

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
EUR 270,82 EUR 327,69 Incl. BTW
Zet op verlanglijstje
Bekijk onze winkels
Op bestelling
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen
  • Alternatieve artikelen
  • Gerelateerde artikelen

Barcode

Artikelomschrijving

Technical data: DAT 1 on board filter

The patented Duo Aqua Trap™ offers the best of both worlds in fuel conditioning using proven media. It is considered to be the best available in the market in addressing both free and suspended water as well as particulate contamination in one effective pre filter. The Duo-Aqua trap filter is a on-board filter that offers three filters in one housing:
• Water trap
• Spin on filter
• Depth filter
DAT 1 is available in numerous configurations to suit all diesel engines using:
• Unique multiple flow direction using only two ports
• Prime pump head available or
• Adaptor available for spin -on conversion compatible with other dominant market heads.

Full transparent spin on bowl for fuel quality inspection, plus self draining plug, water sensor plug and red floating ball to indicate presence of water. Virtually totally constructed from indestructible automotive plastic.
“GRP”. Spin-on clear plastic bowl has a viton O ring .
Banjo bolts plus bleed screw use dowty washers – ensures effective sealing. Multi- functional and cost effective.

Specificaties

Product groepFilteratie
Medium groepBrandstoffen: Diesel (B10, B30, B100), Marine Diesel, HVO, Biodiesel, Petroleum, FAME
Maximale werkdruk< 3 bar
Uitvoering Detail Element
ApplicationClean-Diesel
Dispensing Pumps
Cleanfuel
FunctionSolid Removal
Water Separator
Water Coalescer
Micron Rating10
Maximum Flow Rate (GPM)1 GPM
Flowrate Diesel (GPM)1 GPM
Maximum Flow Rate (LPM)3,78 LPM
Flowrate Diesel (LPM)3,78 LPM
Recommended changeout (psi)22 psi
Recommended changeout (bar)1.5 bar
Working pressure (psi)30 psi
Working pressure (bar)2 bar
Maximum operating temperature (°F)122 °F
Maximum operating temperature (°C)50 °C
Suitable forDiesel Fuel
Lubricating Oils
Hydraulic Oils
Biodiesel (DIESEL / FAME)
Turbine Lube Oil
Compressor Lube Oil
GTL
HVO
Synthetic Diesel
Biodiesel (DIESEL / HVO)
CleanableNo
Free and emulsified Water removal < PPMYes
Protective Outer WrapYes
End Cap ConfigurationOpen End & Blind Opposite
Filter MaterialPTFE coated screen
Stainless Steel Wire Mesh
Synthetic media
Seal MaterialViton
MerkiCerMax
CategorieOnderdelen filters
ArtikelcodeIXFDA-0001
VerpakkingStuk(s)
