PECO Series 75VTL
TITAN PURASEP®
VERTICAL GAS FILTER-SEPARATOR
GENERAL DATA
The Series 75VTL vertical filter-separator is designed for separation of solid and liquid contaminants from a natural gas stream. It is available in all major design codes and

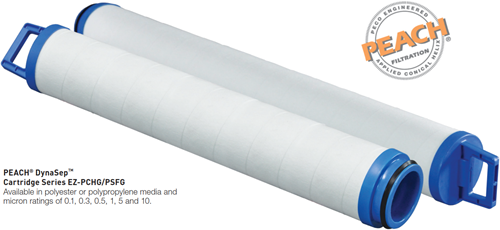

certifications from 10” through 84” diameter sizes. The vessel is separated into two stages. The first stage compartment contains replaceable filter cartridges
mounted on supporting z-bar risers welded into a cartridge support plate which separates the first stage compartment from the second stage compartment.
A quick opening closure is provided on the first stage in order to change-out cartridges. The second stage compartment contains a high efficiency mist extraction
device which could be of the wire mesh, vane or Cyclotube® type. Liquids will collect in both stages of the vessel. Liquid levels will need to be monitored and drained.
The cartridges in the vessel will become dirty or “spent” as solids collect on the cartridge. As this happens the differential pressure across the inlet and outlet flange connections of the
vessel will begin to increase. The vessel should be serviced once the cartridges have reached the recommended change-out differential pressure.
