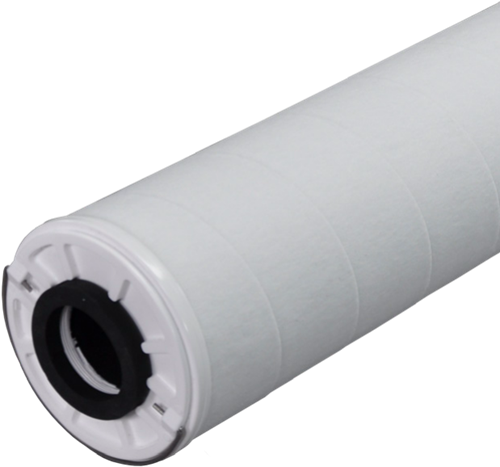

XS-540 XTREAMSORB® PEACH® CARBON BLOCK FILTER-ADSORBER CARTRIDGES

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
PECO XS Series
PECO MEDIA
PECO SEAL
PECO HC
Stuur mij een offerteZet op verlanglijstje
Bekijk onze winkels
Op bestelling
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Accessoires
  • Veel gestelde vragen

Barcode

Artikelomschrijving

“REVOLUTIONIZE YOUR PROCESS PURIFICATION, UPGRADE CARBON CANISTERS WITH XTREAMSORB”

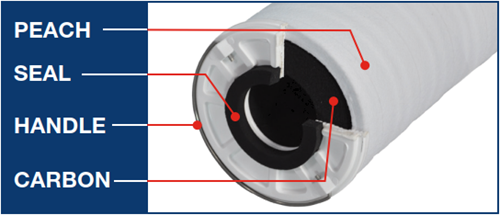

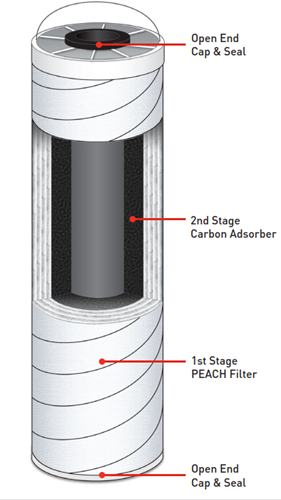

The XtreamSorb, Series XS, filter-adsorber cartridge incorporates both PEACH filtration technology and proprietary carbon block technology to provide an unprecedented two-stage cartridge with filtration and adsorption capabilities all in one. The Series XS removes the need for separate upstream particulate filtration and provides maximized adsorption of impurities such as heavy hydrocarbons, degradation compounds and aromatics from process liquids and water. The block does not release carbon fines into the downstream effluent, which removes the need for separate downstream particulate filtration as well.

""

Documenten

Specificaties

Product groepFilteratie
Medium groepAdBlue, Kunstmest, Water, Ureum
Antivries, Ruitensproeier vloeistof (puur en mix)
Vloeibare gassen, LPG, NH3, LNG
ApplicationMilitary
Industrial
Water
Liquified Natural Gas
FunctionSolid Removal
Aromatics Removal
Heavy Hydrocarbon Impurities Removal
Hydrocarbon Color Species Removal
Flow DirectionOutside-to-Inside
Micron Rating5
Recommended changeout (psi)20 psi
Recommended changeout (bar)0,68 bar
Max Differential pressure (bar)1,3 bar
Max Differential pressure (psi)20 psi
Maximum operating temperature (°F)220 °F
Maximum operating temperature (°C)104 °C
CleanableNO
Internal diameter - Element (inch)2,2 inch
Internal diameter - Element (mm)55 mm
External diameter - Element (inch)5,5 inch
External diameter - Element (mm)139 mm
Overall length (Inch)40 inch
Overall length (mm)1016 mm
End Cap ConfigurationOpen End
PH Range (continuous operation)3 to 10
Filter MaterialPolyester
Polypropylene
Type of Adsorption MaterialProprietary carbon block technology
Seal MaterialBuna-N
Viton
EPDM
MerkPeco Facet
CategorieFiltratie
ArtikelcodeXS-540
VerpakkingStuk(s)

Accessoires

PECO MODEL 14 XTREAMSORB® CARBON BLOCK FILTER-ADSORBER
Artikelnummer: PECO MODEL 14
