XP-G-6 XtreamPure® PLEATED, HIGH FLOW RATE STYLE LIQUID FILTER CARTRIDGES

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
PECO XP-G Series
PECO MICRON
PECO MEDIA
PECO SEAL
Stuur mij een offerteZet op verlanglijstje
Bekijk onze winkels
Op bestelling
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Veel gestelde vragen

Barcode

Artikelomschrijving

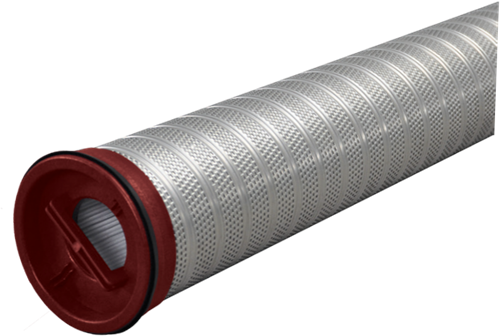

The XtreamPure, Series XP-G, is a large 6” diameter cartridge designed to filter liquid from inside-to-outside. This design has several advantages. It allows for high flow rate capability within a single cartridge so fewer cartridges are needed compared to traditional 2.5” and 3” diameter designs. It keeps contaminants trapped within the cartridge, so the vessel remains clean. The cartridge includes a handled end cap with patented chevron seal technology to provide an absolute sealing of the cartridge to the basket support. This means there is no need for tools when sealing making it a safe, user friendly choice while also reducing maintenance time and money. The Series XP-G is built using a multi-layered w-pleat media design which keeps each pleat from folding on itself so that uniform contaminant loading throughout the pleat pack is achieved. The XP-G is made from glass media with a sturdy steel outer support. The outer support keeps pleats from ballooning and getting lodged in the vessels’ cartridge support baskets.
""

Documenten

Specificaties

Product groepFilteratie
Medium groepAdBlue, Kunstmest, Water, Ureum
Antivries, Ruitensproeier vloeistof (puur en mix)
Vloeibare gassen, LPG, NH3, LNG
Oplosmiddelen (Methanol, Xylene, Naptha, Aceton, MEK, MIBK, Alcohol, Ethanol)
ApplicationIndustrial
Water
Reverse Osmosis (RO)
Pre-Filtration
FunctionSolid Removal
Aromatics Removal
Heavy Hydrocarbon Impurities Removal
Hydrocarbon Color Species Removal
Flow DirectionInside-to-Outside
Micron Rating1
5
10
20
30
Recommended changeout (psi)35 psi
Recommended changeout (bar)2,4 bar
Max Differential pressure (bar)3,4 bar
Max Differential pressure (psi)50 psi
Maximum operating temperature (°F)350 °F
Maximum operating temperature (°C)177 °C
CleanableNO
Internal diameter - Element (inch)3 inch
Internal diameter - Element (mm)76 mm
External diameter - Element (inch)6,3 inch
External diameter - Element (mm)160 mm
Overall length (Inch)60 inch
Overall length (mm)1524 mm
End Cap ConfigurationOpen End
PH Range (continuous operation)3 to 9
Filter MaterialPolyester
Polypropylene
Type of Adsorption MaterialProprietary carbon block technology
Seal MaterialBuna-N
Viton
EPDM
MerkPeco Facet
CategorieFiltratie
ArtikelcodeXP-G-6
VerpakkingStuk(s)
