C-633-TB XTREAMPHASE® DEPTH GLASS STYLE LIQUID/LIQUID PHASE COALESCERS

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
PECO C-TB Series
PECO SEAL
Stuur mij een offerteZet op verlanglijstje
Bekijk onze winkels
Op bestelling
Toevoegen aan favorieten

Waarom Dial:


  • Groot assortiment
  • Eerlijk en goed advies
  • Ruim 17.000 artikelen op voorraad
  • Voor 15:00 uur besteld, volgende werkdag in huis!
  • Levering op zaterdag mogelijk
  • € 250,- franco binnen Nederland
  • Artikelomschrijving & specificaties
  • Documenten
  • Accessoires
  • Veel gestelde vragen

Barcode

Artikelomschrijving

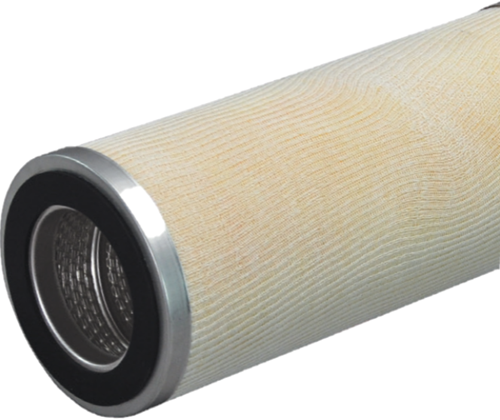

PECO Series C Threaded Base

XTREAMPHASE DEPTH GLASS STYLE LIQUID/LIQUID PHASE COALESCERS

for use in PECO Series 110V and 110H XtreamPhase® vessels or competitor vessels of similar design

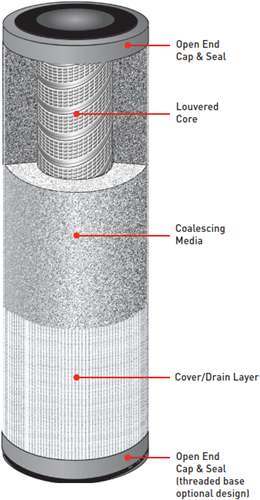

Series C coalescer cartridges are used in vertical and horizontal PECO Series 110 vessels and also as a retrofit to other competitor equivalents. The cartridge is designed to coalesce and separate free and entrained water from fluids such as aromatics, condensate, diesel, gasoline, kerosene, LPG and lube oil. The cartridge can also be used to remove entrained liquids other than water. The Series C coalescer contains a fiberglass coalescing media, which is hydrophilic in nature, making it an excellent choice for attracting water droplets. The coalescer typically works in conjunction with the Series S separator cartridge. The separator uses a fine hydrophobic material to act as a final barrier/repellent to any stray droplets that try to migrate downstream.

Documenten

Specificaties

Product groepFilteratie
Medium groepBrandstoffen: Benzine E10, E85, Ethanol, Superplus
Brandstoffen: Diesel (B10, B30, B100), Marine Diesel, HVO, Biodiesel, Petroleum, FAME
ApplicationClean-Diesel
Industrial
Cleanfuel
Tank Conditioning
Tankcleaning - Fuel Polishing
FunctionWater Coalescer
Flow DirectionBi-Direction
Recommended changeout (psi)15 psi
Recommended changeout (bar)1 bar
Max Differential pressure (bar)1,7 bar
Max Differential pressure (psi)25 psi
Maximum operating temperature (°F)240 °F
Maximum operating temperature (°C)116 °C
CleanableNO
Free and emulsified Water removal < PPM8 PPM
Internal diameter - Element (inch)3 inch
Internal diameter - Element (mm)76 mm
External diameter - Element (inch)6 inch
External diameter - Element (mm)152 mm
Overall length (Inch)33 inch
Overall length (mm)838 mm

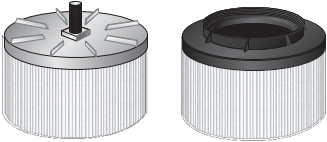

End Cap ConfigurationThreaded Base
PH Range (continuous operation)5 to 9
Filter MaterialResin Impregnated Microglass Media
Seal MaterialBuna-N
Viton
MerkPeco Facet
CategorieFiltratie
ArtikelcodeC-633-TB
VerpakkingStuk(s)

Accessoires

PECO MODEL 110H XTREAMPHASE® HORIZONTAL TWO STAGE LIQUID/LIQUID PHASE COALESCER

PECO MODEL 110H XTREAMPHASE® HORIZONTAL TWO STAGE LIQUID/LIQUID PHASE COALESCER

  • For PECO SERIES C, IPC, PLPC, S, S-SH & S-TF CARTRIDGES
Artikelnummer: PECO MODEL 110H-2ST
PECO MODEL 110H-1ST XTREAMPHASE® HORIZONTAL LIQUID/LIQUID PHASE COALESCER
Artikelnummer: PECO MODEL 110H-1ST
PECO MODEL 110HXP & 110HRXP XTREAMPHASE® HORIZONTAL LIQUID/LIQUID PHASE COALESCER

PECO MODEL 110HXP & 110HRXP XTREAMPHASE® HORIZONTAL LIQUID/LIQUID PHASE COALESCER

  • For PECO SERIES XTRAMPHASE HIGH FLOW STYLE CARTRIDGES
Artikelnummer: PECO MODEL 110HXP
PECO MODEL 110V XTREAMPHASE® VERTICAL TWO STAGE LIQUID/LIQUID PHASE COALESCER

PECO MODEL 110V XTREAMPHASE® VERTICAL TWO STAGE LIQUID/LIQUID PHASE COALESCER

  • For PECO SERIES C, IPC, PLPC, S, S-SH & S-TF CARTRIDGES
Artikelnummer: PECO MODEL 110V-2ST
