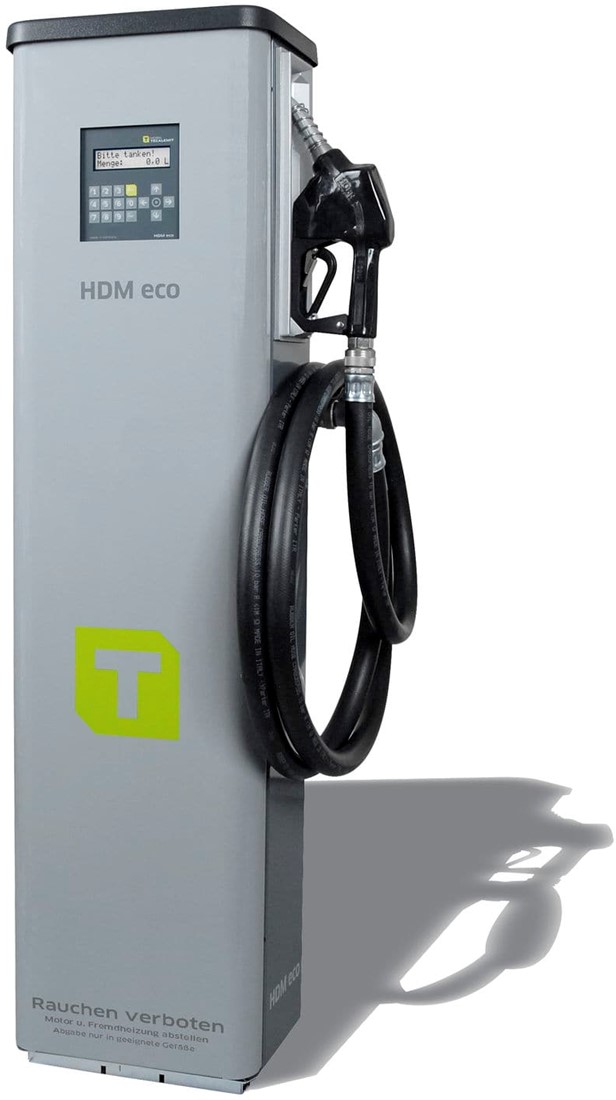

Tank automat with PC-software
Identification via transponder technology
USB-interface for date transfer
Safety features:
- -incl. drip tray
- -incl. leakage monitoring
Technical details:
- Pump: rotary vane pump W 50 II with asynchronous motor
- Nominal voltage: 230 V 50 Hz
- Flow rate: max. 55l/min.*
- Suction height : max. 4m
- Metering principle: oval gear meter with pulser
- Accuracy: +/- 0,5%
- Discharge hose: 4m DN 19 with type-approved automatic nozzle A2010, discharge hose holder
- Inlet: G1''
- Suction line: min. DN 32
- Housing: robust powder-coated steel housing
- Tank automat HDA eco: up to 2000 users
- incl.USB interface for data transfer
- incl. transponder reading unit
- Display : two-line LCD Display, illuminated, 8 or 19mm digit height
- Tank data storage : saves up to 10.000 filling data records
- Medium: Diesel
- Standard language: DE,GB,FR,ES,DK,PL,RO
- Liquid temperature: -20°C - +55°C
- Ambient temperature: -10°C - +55°C
